Dannmar Db-70 Automatic Wheel Balancer- 5140159

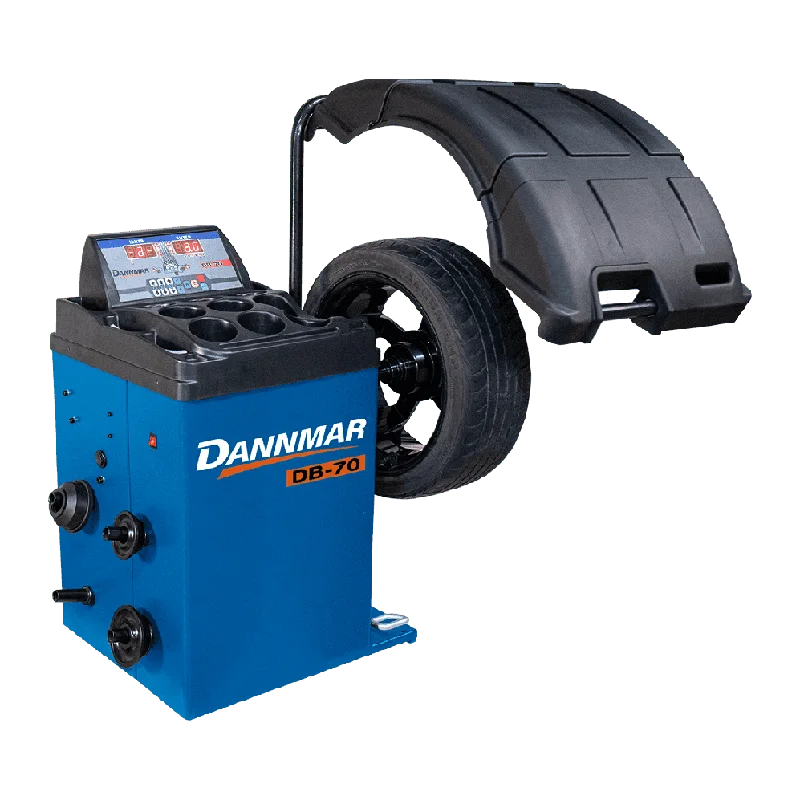

Dannmar’s DB-70 wheel balancer handles wheels up to 28” diameter. The DB-70 is a highly accurate and dependable balancer that features Dannmar’s Digital Sensor Technology providing excellent reliability. Most wheels can be quickly mounted to the balancer with the DB-70’s multi-size center cones. The full rubber perimeter no-mar “Quick-Nut” bell adapter carefully and tightly secures the tire and wheel. An easy touch-pad panel displays tire and wheel assembly graphics. This helps simplify entry of wheel data and supports technicians through balancing procedures. With the wheel setup on the balancer, the DB-70 automatically calculates the precise weight required to achieve an optimal balance. The brightly displayed LEDs indicate the exact amount and location of weight in just seven seconds. A full menu of time-saving features, including Dynamic and Static settings, allows you to balance most wheels with minimal effort and quick speed.
Features
-
Six dynamic balancing modes and one static balancing mode
-
Manual wheel offset distance setting
-
Auto-start when hood is lowered
-
Wheel holding manual brake pedal
-
Truck cone/spacer ring adapter set
-
No-mar rear cone mount pressure cup
-
Quick-release and mount hub nut
-
LED rolling wheel weight displays
-
Easy-to-use controls
Specifications
| Motor | 110-230 VAC, 50-60 Hz, 1-Ph |
|---|---|
| Cycle Time | 7 seconds |
| Balancing Modes | 6 Dynamic / 1 Static |
| Drive System | Serpentine Poly-V Belt |
| Wheel Braking | Lever Caliper Brake / Foot Pedal |
| Cones Included | 4 |
| Max. Tire Diameter | 49” (1,247 mm) |
| Max. Tire Weight | 150 lbs. (68 kg) |
| Wheel Diameter Capacity | 10” – 28” (254 mm – 711 mm) |
| Wheel Width Capacity | 1.5” – 20” (38 mm – 508 mm) |
| Balancing Increments | 0.25 or 0.01 ounce |
| Balancing Speed | 260 RPM |
| Accuracy | +- 1 Gram (.035 oz) |
| Noise | 70 dB |
