Description

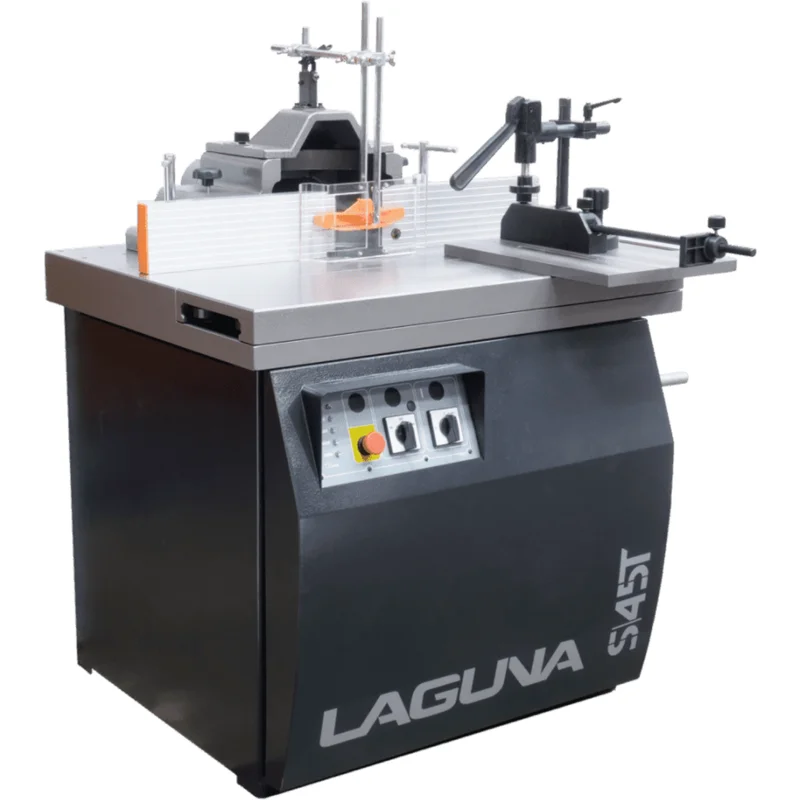

Laguna Tools Industrial Shaper – S|45T – MSHAPS45T-5
The Laguna S|45T Industrial Shaper was designed to be a heavy duty industrial workhorse for commercial applications. Weighing in at over 1000 lbs. it provides an exceptional value for any pro shop. The combination of dynamic electronically balanced spindle with robust solid castings makes the S45T run extremely smooth with absolute minimum versatile 45° backward & 10° forward tilting spindle makes using a feeder much easier & keeps the cutting action close to the cast table rather than shaping from the top. Oversized cast table pre-drilled to accept most feeders & featuring sliding table with tenoning as standard. Complete with table & hold down clamp. The sliding table has a full 30” stroke from miter fence to center of spindle. Miter gauge adjusts +/- 45° The interchangeable spindle comes standard as 1-¼″, but other sizes including router collets are available. The fence is made from heavy cast iron & easily adjusts w micro-adjusters for both in/out feed. LED lights display the desired RPM. The S45T is available in both 1 phase & 3 phase. Other voltages also available upon request.
Features
- Motor: 5HP 1 Phase or 7.5HP 3 Phase
- Spindle Tilt: 45° Backwards, 10° Forward
- Sliding Table: 10-1/4″ x 39″
- Sliding Table Stroke: 18-3/4″
- Main Table Incl. S/T: 39-1/2″ x 31-5/8″
- Tenoning Table:13-3/4″ x 18-1/2″
Specifications
- Hold Down Clamp: Included
- Tenoning Table Adjustment: 7″ Slide To Spindle
- Sliding Table Stroke: 19″ Right of Spindle
- Sliding Table Stroke: 19″ Left of Spindle
- Sliding Table Far Right: 30″ Spindle To Miter Gauge
- Table Height: 35-⅜″
- Capacity Under Nut: 5″/125mm
- Spindle Stroke: 7″/180mm
- Spindle: 1-¼″ Interchangeable
- Max Tooling Diameter: 8-¼″/210mm Under Table
- Max Tooling Diameter: 13″/335mm Above Table
- Rotation: Forward/Reverse
- Fence: Micro Adjust, Cast Body
- Speeds: 3000/4000/6000/8000/10000 RPM
- Readout: LED Lights For Speeds
- Readout: Mechanical Tilt & Spindle Height
- Feeder: Pre-drilled Left Back Corner
- Router Collet: Accepts, Not Included
- CAS Components
- Weight (Net/Ship): 1056/1350 lbs
- Shipping Dimensions (L x W x H): 49″ x 45″ x 50″
Manual
- Industrial S|45T Shaper Manual
Video
What Our Experts Think
-
Balanced Industrial Build: The S|45T’s heavy cast-iron construction and electronically balanced spindle deliver smooth, low-vibration shaping ideal for high-precision woodworking.
-
Tilt-Spindle Versatility: With 45° backward and 10° forward tilt, it supports advanced profiles and feeder integration with ease.
-
Large Sliding Table & Tenoning Carriage: Generous dimensions (10-1/4″ × 39″ table, 18-3/4″ travel) enhance workflow and repeatable accuracy.
-
Speed Flexibility: Multiple spindle speeds (3,000 to 10,000 RPM) ensure clean results on various materials.
-
Pro Shop Ready: Available in 5 HP single-phase and 7.5 HP three-phase models, it’s ideal for demanding production work.
Q&A
Q: What spindle tilt does the S|45T offer?
A: 45° backward tilt and 10° forward tilt for enhanced shaping and feeder compatibility.
Q: What are the sliding table dimensions and stroke?
A: The sliding table measures 10-1/4″ × 39″ with an 18-3/4″ stroke.
Q: What motor options are available?
A: Offered in 5 HP single-phase or 7.5 HP three-phase configurations.
Q: What spindle speeds does the machine support?
A: Speed range from 3,000 RPM to 10,000 RPM allows versatile cutter and material use.
Maintenance Tips
-
Clean Table & Carriage Regularly: Remove dust and debris after each use to maintain smooth motion.
-
Check Spindle Draw-Bar & Nut: Ensure the keyed washer and draw-bar nut are secured before each operation.
-
Lubricate Moving Components: Follow routine lubrication for bearings, slideways, and tilt mechanisms.
-
Inspect Belts & Electrical System: Check for wear, tension, and proper alignment regularly.
-
Maintain Dust Extraction: Keep the dust port and fence assembly clear for optimal performance and safety.
Reviews
There are no reviews yet.
