Description

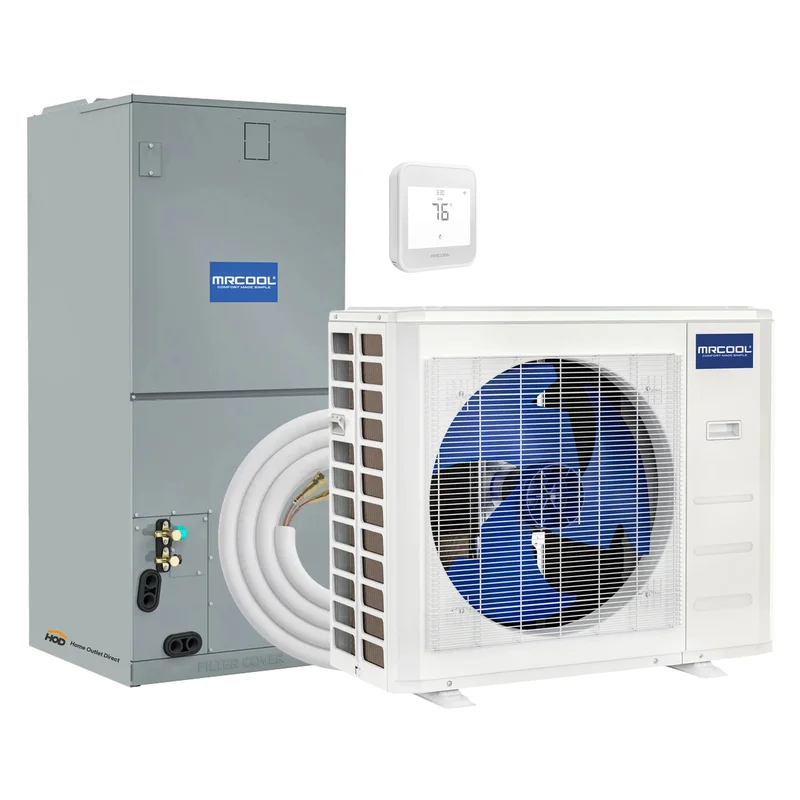

MRCOOL Hyper Heat 2nd Gen 36K BTU, 3 Ton, 17.4 SEER2 Heat Pump Condenser and Ducted Air Handler with 15 Ft. R-454B No-Vac Lineset – CENTRAL-36-HP-230B15
The MRCOOL Central Heat Pump & Air Conditioner Bundle is a heating and cooling system you need to stay warm in winter, cool in summer, and energy efficient all year long.
Features
-
MRCOOL Hyper Heat 2nd Gen 36K BTU, 3 Ton, 17.4 SEER2 Central Ducted Condenser
-
MRCOOL VersaPro 2nd Gen 36K BTU, 3 Ton Central Ducted Air Handler
-
MRCOOL 15 Ft. R-454B No-Vac Lineset
- MRCOOL Smart Thermostat
1. MRCOOL Hyper Heat 2nd Gen 36K BTU, 3 Ton, 17.4 SEER2 Central Ducted Condenser (CENTRAL-36-HP-C-230B00-O)
-
Uses R-454B refrigerant to reduce environmental impact
-
10-year warranty covering the compressor, parts, and labor
2. MRCOOL VersaPro 2nd Gen 36K BTU, 3 Ton Central Ducted Air Handler (MVP-36-HP-MUAH-230A00-O)
-
Designed for flexible installation, offering options for upflow, downflow, and horizontal left or right configurations to suit various home layouts
-
Uses eco-friendly R-454B refrigerant to help reduce its environmental impact, and an optional heat kit is available for added functionality.
3. MRCOOL 15 Ft. R-454B No-Vac Lineset (NV15-3834-O)
-
Kink Resistant – Precharged
-
Simple Secure Quick Connect
-
UV Protected Insulation
-
Works With: VersaPro 2nd Gen – Central Ducted Hyper Heat 2nd Gen
4. MRCOOL Smart Thermostat (MST04)
-
Ensure ideal temperature with presets for Home, Away, and Sleep that perfectly align to match your specific needs and preferences.
-
One App for All Your HVAC Systems
-
Global Control for Remote Accessibility
-
Works with Alexa, Google, Siri, and MRCOOL® Link
Specifications
| Condenser | |
|---|---|
| Dimensions | 16.34″ D x 38.39″ H x 38.58″ W |
| SEER2 | 17.4 |
| Tonnage | 3 |
| Cooling Capacity (BTU) | 36000 |
| Heating Capacity (BTU) | 37000 |
| Voltage (V) | 208-230 |
| Refrigerant Type | R454B |
| Air Handler | |
| Dimensions | 21.02″ D x 49.02″ H x 21.02″ W |
| Tonnage | 3 |
| Cooling Capacity (BTU) | 36000 |
| Heating Capacity (BTU) | 36000 |
| Voltage (V) | 115/208-230 |
| Lineset | |
| Dimensions | 30″ D x 30″ H x 5″ W |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 2.11 |
| Line Set Length | 15ft |
| Lineset Fitting Type | Quick-Connect |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
What our Experts Think
-
Efficient Heating & Cooling – 36K BTU, 3-ton capacity ideal for medium-sized homes.
-
High Energy Efficiency – 17.4 SEER2 rating delivers strong performance while reducing energy costs.
-
Hyper Heat Capability – Provides reliable heating even in colder climates.
-
Complete System with Lineset – Heat pump condenser with ducted air handler and 15 ft. R-454B No-Vac lineset for easy installation.
-
Durable & Reliable – Engineered for consistent, long-term operation.
Q&A
Q: What is the heating and cooling capacity of this system?
A: The MRCOOL CENTRAL-36-HP-230B15 delivers 36,000 BTU (3 ton) capacity, suitable for medium to large homes.
Q: What efficiency rating does it support?
A: This system operates at 17.4 SEER2, ensuring energy-efficient cooling and heating year-round.
Q: What components are included?
A: It includes a heat pump condenser, ducted air handler, and 15 ft. R-454B No-Vac lineset, providing a complete, easy-to-install central HVAC solution.
Q: Can it provide both heating and cooling?
A: Yes, it functions as a Hyper Heat heat pump system, delivering reliable cooling in summer and enhanced heating in winter.
Q: Who is this system ideal for?
A: Ideal for homeowners and contractors seeking a high-efficiency, ducted central split system with simplified No-Vac installation.
Q: Is professional refrigerant charging required?
A: No, the No-Vac lineset allows installation without professional evacuation or charging.
Maintenance Tips
-
Replace or clean air filters every 1–2 months to maintain proper airflow.
-
Keep outdoor condenser clear of leaves, dirt, and debris.
-
Inspect ductwork for leaks or blockages to ensure efficient operation.
-
Check refrigerant lines, electrical connections, and lineset condition regularly.
-
Flush condensate drain lines to prevent clogs and water damage.
-
Schedule annual professional maintenance to maintain peak performance and system longevity.
