Description

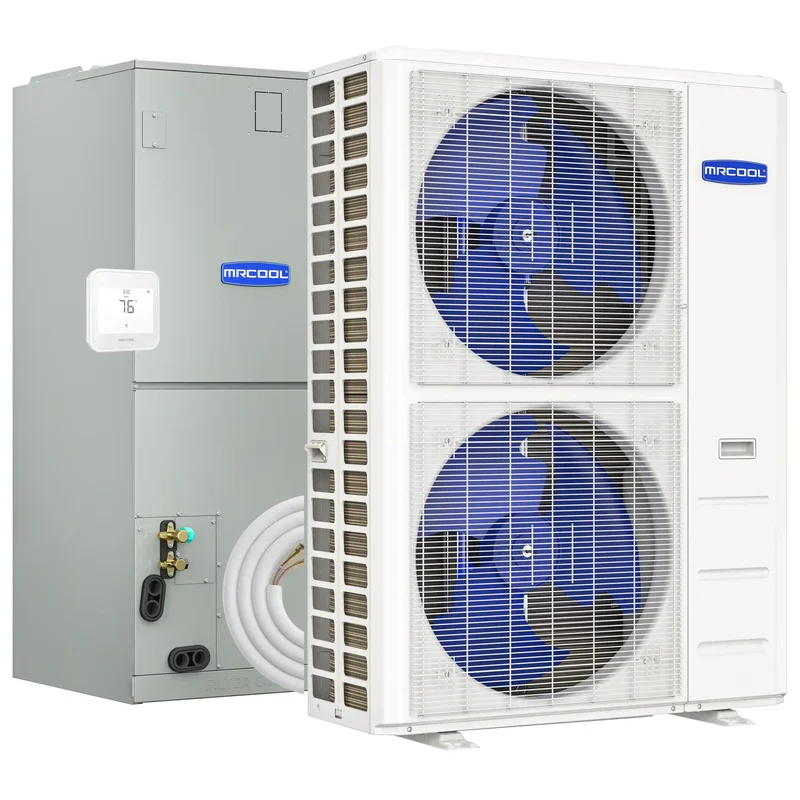

MRCOOL Hyper Heat 2nd Gen 60K BTU, 5 Ton, 16 SEER2 Heat Pump Condenser and Ducted Air Handler with 50 Ft. R-454B No-Vac Lineset – CENTRAL-60-HP-230B50
The MRCOOL Central Heat Pump & Air Conditioner Bundle is a heating and cooling system you need to stay warm in winter, cool in summer, and energy efficient all year long.
Features
-
MRCOOL Hyper Heat 2nd Gen 60K BTU, 5 Ton, 16 SEER2 Central Ducted Condenser
-
MRCOOL VersaPro 2nd Gen 54K BTU, 5 Ton Central Ducted Air Handler
-
MRCOOL 50 Ft. R-454B No-Vac Lineset
- MRCOOL Smart Thermostat
1. MRCOOL Hyper Heat 2nd Gen 60K BTU, 5 Ton, 16 SEER2 Central Ducted Condenser (CENTRAL-60-HP-C-230B00-O)
-
Thermostat makes it easy to control your home’s climate.
-
10-year warranty covering the compressor, parts, and labor,
2. MRCOOL VersaPro 2nd Gen 54K BTU, 5 Ton Central Ducted Air Handler (MVP-60-HP-MUAH-230A00-O)
- Uses R-454B refrigerant
- Provides flexible installation options
- SEER2 rating of up to 16
3. MRCOOL 50 Ft. R-454B No-Vac Lineset (NV50-3834-O)
- Kink Resistant – Precharged
- Simple Secure Quick Connect
- UV Protected Insulation
- Works With: VersaPro Gen 2 – Central Hyper Heat Gen 2aVersaPro 2nd Gen – Central Ducted Hyper Heat 2nd Gen
4. MRCOOL Smart Thermostat (MST04)
-
Ensure ideal temperature with presets for Home, Away, and Sleep that perfectly align to match your specific needs and preferences.
-
One App for All Your HVAC Systems
-
Global Control for Remote Accessibility
-
Works with Alexa, Google, Siri, and MRCOOL® Link
Specifications
| Condenser | |
|---|---|
| Dimensions | 16.34″ D x 52.48″ H x 37.48″ W |
| SEER2 | 16 |
| Tonnage | 5 |
| Cooling Capacity (BTU) | 54000 |
| Heating Capacity (BTU) | 56000 |
| Voltage (V) | 208-230 |
| Refrigerant Type | R454B |
| Air Handler | |
| Dimensions | 24.49″ D x 52.99″ H x 21.02″ w |
| Tonnage | 5 |
| Cooling Capacity (BTU) | 54000 |
| Heating Capacity (BTU) | 54000 |
| Voltage (V) | 115/208-230 |
| Lineset | |
| Dimensions | 47″ D x 47″ H x 5″ W |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 17.19 |
| Line Set Length | 49.2ft |
| Lineset Fitting Type | Quick-Connect |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
What our Experts Think
-
High-Capacity Heating & Cooling – 60K BTU, 5-ton capacity ideal for larger homes and spaces.
-
Energy Efficient – 16 SEER2 rating delivers strong performance while reducing energy costs.
-
Hyper Heat Capability – Provides reliable warmth in cold climates.
-
Complete System with Extended Lineset – Heat pump condenser with ducted air handler and 50 ft. R-454B No-Vac lineset for flexible installation.
-
Durable & Reliable – Built for consistent, long-term operation.
Q&A
Q: What is the heating and cooling capacity of this system?
A: The MRCOOL CENTRAL-60-HP-230B50 delivers 60,000 BTU (5 ton) capacity, ideal for large homes or commercial spaces.
Q: What efficiency rating does it support?
A: This system operates at 16 SEER2, ensuring energy-efficient cooling and heating year-round.
Q: What components are included?
A: It includes a heat pump condenser, ducted air handler, and 50 ft. R-454B No-Vac lineset, providing a complete, easy-to-install HVAC solution.
Q: Can it provide both heating and cooling?
A: Yes, it functions as a Hyper Heat heat pump system, delivering reliable cooling in summer and enhanced heating in winter.
Q: Who is this system ideal for?
A: Perfect for homeowners and contractors seeking a high-capacity, ducted central split system with extended No-Vac line installation.
Q: Is professional refrigerant charging required?
A: No, the No-Vac lineset allows installation without professional evacuation or charging.
Maintenance Tips
-
Replace or clean air filters every 1–2 months to maintain proper airflow.
-
Keep outdoor condenser free from leaves, dirt, and debris.
-
Inspect ductwork for leaks or blockages to ensure efficient operation.
-
Check refrigerant lines, electrical connections, and lineset integrity regularly.
-
Flush condensate drain lines to prevent clogs and water damage.
-
Schedule annual professional maintenance for peak performance and extended system life.
Reviews
There are no reviews yet.
