Description

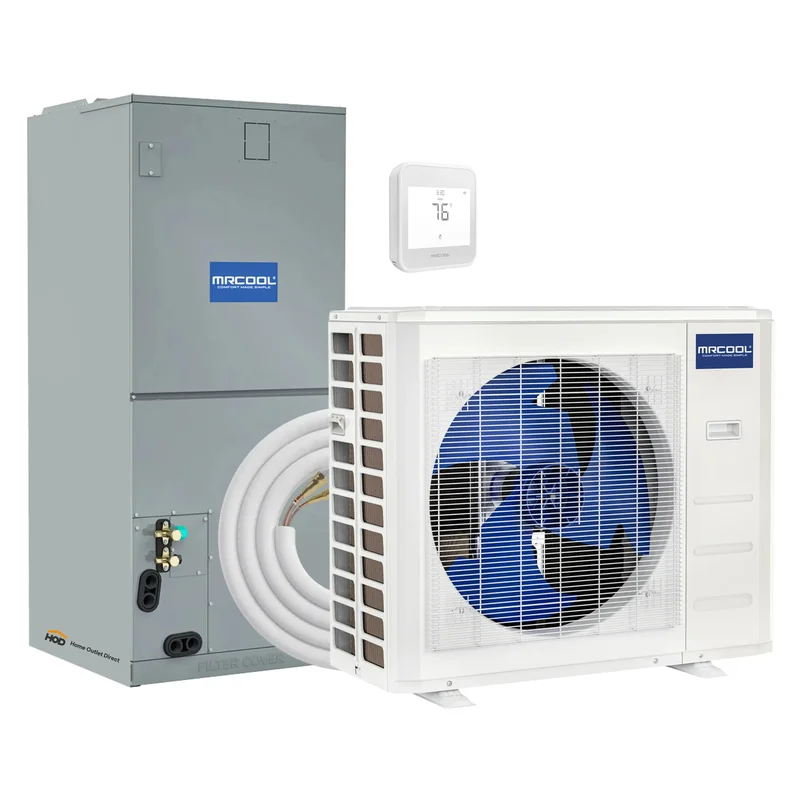

MRCOOL VersaPro 2nd Gen Central Split System with 24K BTU, 2 Ton, 18.1 SEER2, Heat Pump Condenser and Ducted Air Handler with 50 Ft. R-454B No-Vac Lineset – MVP-24-HP-230A50
The MRCOOL Central Split System Bundle is a heating and cooling system you need to stay warm in winter, cool in summer, and energy efficient all year long.
Features
-
MRCOOL VersaPro 2nd Gen 24K BTU, 2 Ton, 18.1 SEER2 Central Ducted Heat Pump Condenser
-
MRCOOL VersaPro 2nd Gen 24K BTU, 2 Ton Central Ducted Air Handler
-
MRCOOL 50 Ft. R-454B No-Vac Lineset
-
MRCOOL Smart Thermostat
1. MRCOOL VersaPro 2nd Gen 24K BTU, 2 Ton, 18.1 SEER2 Central Ducted Heat Pump Condenser (MVP-24-HP-C-230A00-O)
-
2 Ton
-
SEER2 rating of 18.1 and an HSPF4 rating of 9.7
-
R-454B refrigerant
-
10-year warranty on the compressor and parts
2. MRCOOL VersaPro 2nd Gen 24K BTU, 2 Ton Central Ducted Air Handler (MVP-24-HP-MUAH-230A00-O)
-
2 Ton
-
SEER2 rating of up to 18.3
-
R-454B refrigerant
-
10-year warranty
-
Flexible installation options, including upflow, downflow, and horizontal left or right configurations
3. MRCOOL 50 Ft. R-454B No-Vac Lineset (NV50-3834-O)
-
Kink Resistant – Precharged
-
Simple Secure Quick Connect
-
UV Protected Insulation
-
Works With: VersaPro Gen 2 – Central Hyper Heat Gen 2aVersaPro 2nd Gen – Central Ducted Hyper Heat 2nd Gen
4. MRCOOL Smart Thermostat (MST04)
-
Ensure ideal temperature with presets for Home, Away, and Sleep that perfectly align to match your specific needs and preferences.
-
One App for All Your HVAC Systems
-
Global Control for Remote Accessibility
-
Works with Alexa, Google, Siri, and MRCOOL® Link
Specifications
| Condenser | |
|---|---|
| Dimensions | 13.46″ D x 26.5″ H x 35.04″ W |
| SEER2 | 18.1 |
| Tonnage | 2 |
| Cooling Capacity (BTU) | 24000 |
| Heating Capacity (BTU) | 26000 |
| Voltage (V) | 208-230 |
| Refrigerant Type | R454B |
| Air Handler | |
| Dimensions | 17.52″ D x 45″ H x 21.02″ W |
| Tonnage | 2 |
| Cooling Capacity (BTU) | 24000 |
| Heating Capacity (BTU) | 26000 |
| Voltage (V) | 115/208-230 |
| Lineset | |
| Dimensions | 47″ D x 47″ H x 5″ W |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 17.19 |
| Line Set Length | 49.2ft |
| Lineset Fitting Type | Quick-Connect |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
What our Experts Think
-
Efficient Cooling & Heating: 18.1 SEER2 rating delivers strong energy savings with reliable performance.
-
Ideal Capacity: 24,000 BTU (2 Ton) suits medium-sized homes or offices.
-
Eco-Friendly Refrigerant: Uses R-454B to reduce environmental impact.
-
Complete Heat Pump System: Includes condenser, ducted air handler, and 50 ft no-vac lineset for easy setup.
-
Balanced Comfort: Designed for central ducted systems, ensuring even airflow and temperature control.
-
Reliable Quality: Built with MRCOOL’s durable components for long-lasting use.
-
Smart Home Ready: Compatible with modern thermostats for convenient temperature management.
Q&A
Q: What is the MRCOOL VersaPro 2nd Gen 24K BTU Central Split System?
A: A 2-ton heat pump system with 24,000 BTU cooling capacity, designed for ducted homes.
Q: What is its efficiency rating?
A: Features an 18.1 SEER2 rating for energy-efficient heating and cooling.
Q: What refrigerant does it use?
A: Uses eco-friendly R-454B refrigerant with a 50 ft. no-vacuum lineset included.
Q: What components are included?
A: Includes a heat pump condenser and a ducted air handler.
Maintenance Tips
-
Replace or clean air filters every 1-3 months.
-
Keep outdoor condenser clear of debris and maintain at least 2 feet clearance.
-
Schedule annual professional inspections for refrigerant, coils, and electrical systems.
-
Clean ducts and vents regularly to ensure proper airflow.
-
Address any unusual noises or performance issues promptly.
