Description

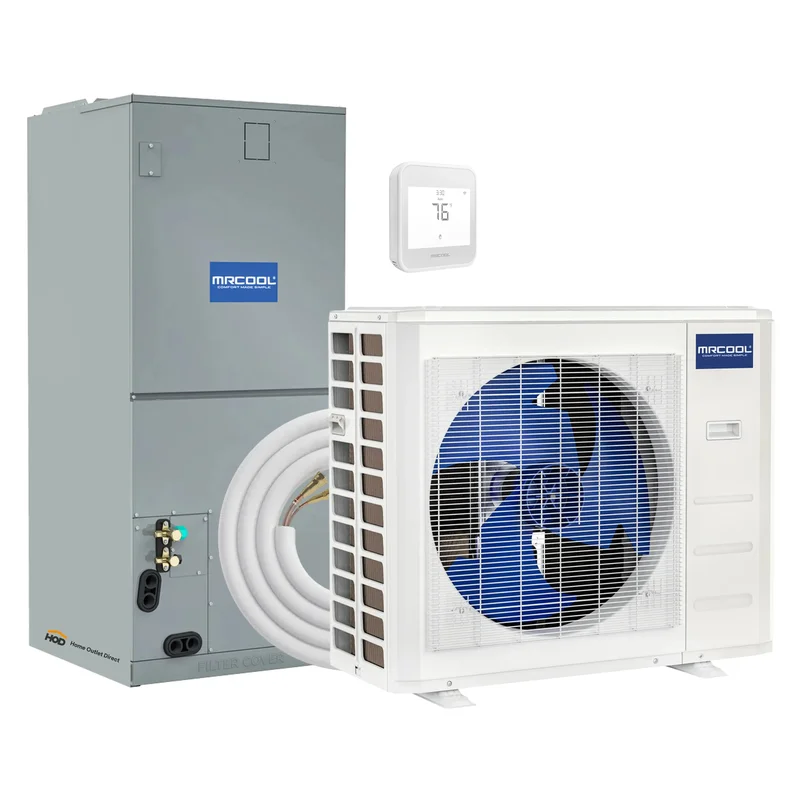

MRCOOL VersaPro 2nd Gen Central Split System with 30K BTU, 2.5 Ton, 17 SEER2, Central Ducted Condenser and Ducted Air Handler with 50 Ft. R-454B No-Vac Lineset – MVP-30-HP-230A50
The MRCOOL Central Split System Bundle is a heating and cooling system you need to stay warm in winter, cool in summer, and energy efficient all year long.
Features
-
MRCOOL VersaPro 2nd Gen 30K BTU, 2.5 Ton, 17 SEER2 Central Ducted Condenser
-
MRCOOL VersaPro 2nd Gen 30K BTU, 2.5 Ton Central Ducted Air Handler
-
MRCOOL 50 Ft. R-454B No-Vac Lineset
-
MRCOOL Smart Thermostat
1. MRCOOL VersaPro 2nd Gen 30K BTU, 2.5 Ton, 17 SEER2 Central Ducted Condenser (MVP-30-HP-C-230A00-O)
-
2.5 Ton
-
SEER2 rating of 17 and an HSPF4 rating of 8.5
-
R-454B refrigerant
-
10-year warranty that covers the compressor and parts
2. MRCOOL VersaPro 2nd Gen 30K BTU, 2.5 Ton Central Ducted Air Handler (MVP-30-HP-MUAH-230A00-O)
-
2.5 Ton
-
SEER2 rating of up to 17
-
R-454B refrigerant
-
10-year warranty covering both parts and the compressor
3. MRCOOL 50 Ft. R-454B No-Vac Lineset (NV50-3834-O)
-
Kink Resistant – Precharged
-
Simple Secure Quick Connect
-
UV Protected Insulation
-
Works With: VersaPro Gen 2 – Central Hyper Heat Gen 2aVersaPro 2nd Gen – Central Ducted Hyper Heat 2nd Gen
4. MRCOOL Smart Thermostat (MST04)
-
Ensure ideal temperature with presets for Home, Away, and Sleep that perfectly align to match your specific needs and preferences.
-
One App for All Your HVAC Systems
-
Global Control for Remote Accessibility
-
Works with Alexa, Google, Siri, and MRCOOL® Link
Specifications
| Condenser | |
|---|---|
| Dimensions | 16.14″ D x 31.89″ H x 37.24″ W |
| SEER2 | 17 |
| Tonnage | 2.5 |
| Cooling Capacity (BTU) | 30000 |
| Heating Capacity (BTU) | 31000 |
| Voltage (V) | 208-230 |
| Refrigerant Type | R454B |
| Air Handler | |
| Dimensions | 21.02″ D x 49.02″ H x 21.02″ W |
| Tonnage | 2.5 |
| Cooling Capacity (BTU) | 30000 |
| Heating Capacity (BTU) | 31000 |
| Voltage (V) | 115/208-230 |
| Lineset | |
| Dimensions | 47″ D x 47″ H x 5″ W |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 17.19 |
| Line Set Length | 49.2ft |
| Lineset Fitting Type | Quick-Connect |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
What our Experts Think
-
High Efficiency: With a 17 SEER2 rating, this system offers excellent energy savings, reducing utility bills without compromising performance.
-
Powerful Cooling: 30,000 BTU (2.5 Ton) capacity efficiently cools medium to large homes or office spaces.
-
Advanced Refrigerant: Uses eco-friendly R-454B refrigerant, minimizing environmental impact.
-
Complete Package: Includes both condenser and ducted air handler, plus a 50 ft no-vac lineset for easy installation.
-
Versatile Design: Ideal for central ducted systems, ensuring even airflow and consistent temperature control.
-
Durability & Reliability: Built for long-term use with MRCOOL’s trusted quality standards.
-
Smart Integration: Compatible with modern thermostats and controls for enhanced user convenience.
Q&A
Q: What is the MRCOOL VersaPro 2nd Gen Central Split System?
A: A high-efficiency 2.5-ton central HVAC system with 30,000 BTU cooling capacity, designed for ducted homes.
Q: What efficiency rating does it have?
A: It features a 17 SEER2 rating for energy-efficient cooling and heating.
Q: What refrigerant does it use?
A: Uses eco-friendly R-454B refrigerant with a 50 ft. no-vacuum lineset included.
Q: What components are included?
A: Includes a central ducted condenser and a ducted air handler.
Maintenance Tips
-
Clean or replace air filters every 1-3 months.
-
Keep outdoor condenser unit free from debris and plants.
-
Schedule annual professional inspection for refrigerant, coils, and electricals.
-
Ensure proper airflow by keeping vents and ducts clean.
-
Monitor system performance and address unusual noises promptly.
