Description

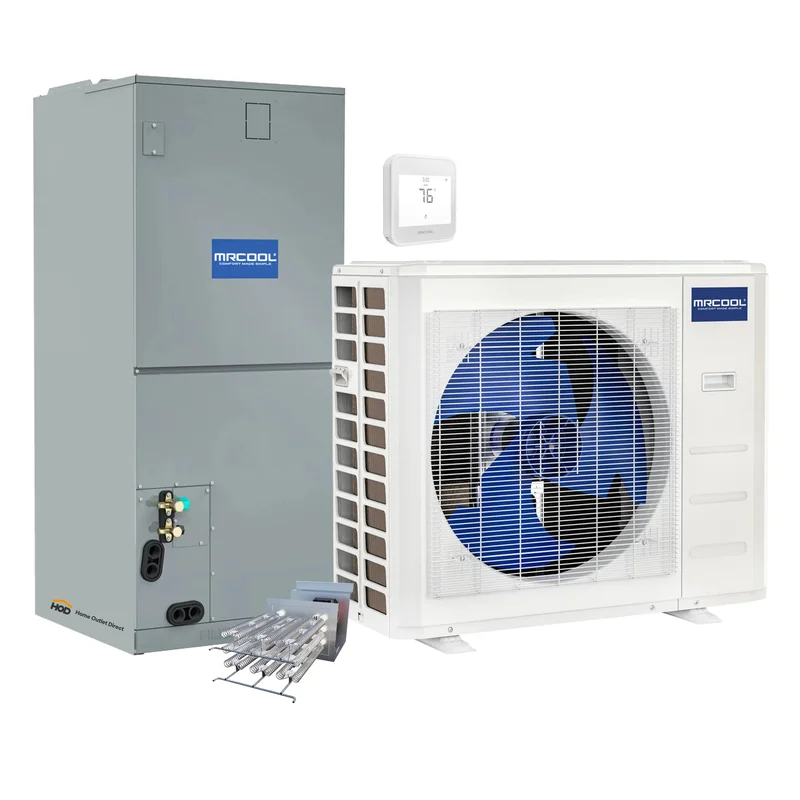

MRCOOL VersaPro 2nd Gen Central Split System with 36K BTU, 3 Ton, 16.1 SEER2, Heat Pump Condenser and Ducted Air Handler with 5kW Heat Kit – MVP36HP2A00OH05
The MRCOOL Central Split System Bundle is a heating and cooling system you need to stay warm in winter, cool in summer, and energy efficient all year long.
Features
-
MRCOOL VersaPro 2nd Gen 36K BTU, 3 Ton, 16.1 SEER2 Central Ducted Heat Pump Condenser
-
MRCOOL VersaPro 2nd Gen 36K BTU, 3 Ton Central Ducted Air Handler
-
MRCOOL 5kW VersaPro & Hyper Heat 2nd Gen 454B Heat Kit
-
MRCOOL Smart Thermostat
1. MRCOOL VersaPro 2nd Gen 36K BTU, 3 Ton, 16.1 SEER2 Central Ducted Heat Pump Condenser (MVP-36-HP-C-230A00-O)
-
3 Ton
-
16.1 and an HSPF4 rating of 8.7.
-
R-454B refrigerant
-
10-year warranty that covers the compressor and parts
2. MRCOOL VersaPro 2nd Gen 36K BTU, 3 Ton Central Ducted Air Handler (MVP-36-HP-MUAH-230A00-O)
-
3 Ton
-
SEER2 rating of up to 17.4
-
R-454B refrigerant
-
10-year warranty,
3. MRCOOL 5kW VersaPro & Hyper Heat 2nd Gen 454B Heat Kit (MVPHK05)
-
Compatible with the following air handlers: MVP-18-HP-MUAH-230A00-O, MVP-24-HP-MUAH-230A00-O, MVP-30-HP-MUAH-230A00-O, MVP-36-HP-MUAH-230A00-O
-
Works With: VersaPro 2nd Gen – Central Ducted Hyper Heat 2nd Gen
4. MRCOOL Smart Thermostat (MST04)
-
Ensure ideal temperature with presets for Home, Away, and Sleep that perfectly align to match your specific needs and preferences.
-
One App for All Your HVAC Systems
-
Global Control for Remote Accessibility
-
Works with Alexa, Google, Siri, and MRCOOL® Link
Specifications
| Condenser | |
|---|---|
| Dimensions | 16.14″ D x 31.89″ H x 37.24″ W |
| SEER2 | 16.1 |
| Tonnage | 3 |
| Cooling Capacity (BTU) | 36000 |
| Heating Capacity (BTU) | 36000 |
| Voltage (V) | 208-230 |
| Refrigerant Type | R454B |
| Air Handler | |
| Dimensions | 21.02″ D x 49.02″ H x 21.02″ W |
| Tonnage | 3 |
| Cooling Capacity (BTU) | 36000 |
| Heating Capacity (BTU) | 36000 |
| Voltage (V) | 115/208-230 |
| Heat Kit | |
| Gross Dimensions | 14.5″ D x 24″ H x 10.25″ W |
| Gross Weight | 11 Lbs |
What our Experts Think
-
Efficient and Reliable — With a 16.1 SEER2 rating, this 3-ton system offers dependable year-round performance for mid-sized homes.
-
Complete Package — Includes a variable-speed heat pump condenser, ducted air handler, and 5kW heat kit—ready for cooling and supplemental heating out of the box.
-
Flexible Installation — Supports multi-position configurations: upflow, downflow, or horizontal, making it easy to fit into different ducting systems.
-
Quiet, Durable Design — Galvanized steel construction and inverter technology ensure quiet operation and long-term durability.
-
Smart Maintenance — Built-in diagnostic capabilities help reduce service time and simplify troubleshooting.
-
Eco-Conscious — Utilizes R-454B refrigerant, a low-GWP option that meets newer environmental standards.
Q&A
Q: What is the system’s capacity?
A: 36,000 BTU (3 Ton) for both heating and cooling.
Q: What is the SEER2 rating?
A: 16.1 SEER2 for energy-efficient performance.
Q: What components are included?
A: Includes a heat pump condenser, ducted air handler, and 5kW heat kit.
Q: Is this a ducted system?
A: Yes, designed for central ducted HVAC installations.
Q: Does it support year-round comfort?
A: Yes, provides both cooling and heating with built-in heat pump and electric backup.
Maintenance Tips
-
Clean or replace air filters every 1–3 months to maintain airflow and system efficiency
-
Keep the outdoor condenser unit free from debris, vegetation, and obstructions
-
Inspect and clean evaporator and condenser coils at least once per year
-
Check condensate drain lines regularly to prevent clogs and water damage
-
Ensure all electrical connections are tight and corrosion-free
-
Test thermostat functionality and settings for both heating and cooling modes
-
Schedule annual professional HVAC inspection to maintain performance and warranty coverage
