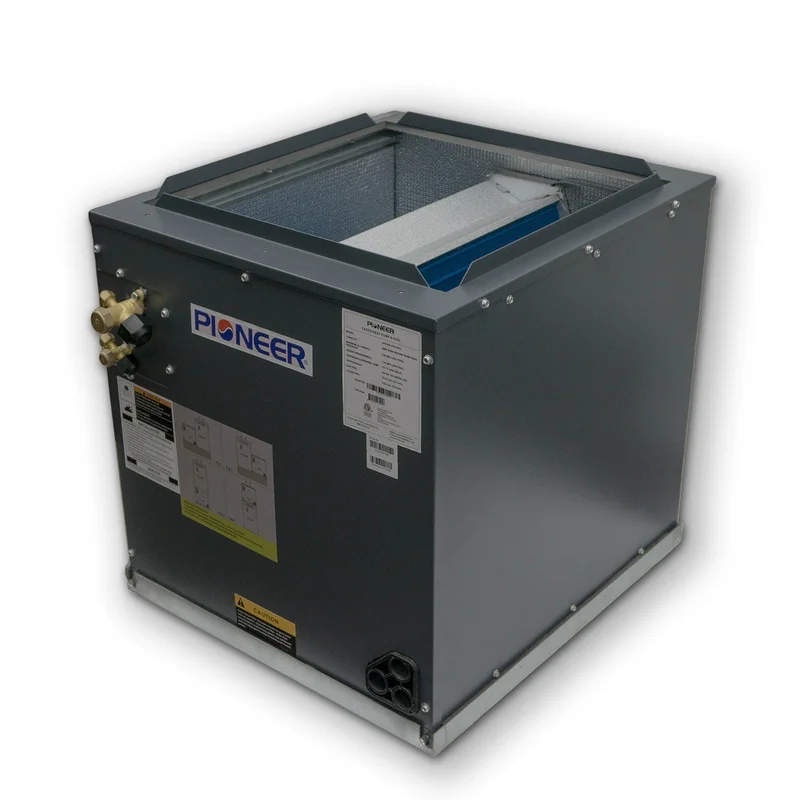

Pioneer 18,000~36,000 BTU Furnace-Connect Multi-Position Cased AC Heat Pump A-Coil – AR1836-UFX18HC
The Pioneer Cased Heat Pump A-Coil is a breakthrough in adaptable and efficient home climate control. This versatile A-coil is crafted to integrate seamlessly with your existing furnace, or, for optimal performance, it can be paired with Pioneer’s high-efficiency YH-series heat pump condenser outdoor sections. Designed to work with systems from 18,000 to 36,000 BTU capacity, this A-coil optimizes the heat exchange process, delivering premium heating and cooling for your home. Experience a perfect blend of high-end technology and unparalleled performance with the Pioneer Cased Heat Pump A-Coil.
Features
- Versatile Compatibility: Pioneer’s A-Coil is specifically designed to integrate effortlessly with your current furnace, allowing for a smooth upgrade and enhanced system performance. It can mounted in various configurations, according to your preference.
- Optional Match-Up: For peak efficiency, match the A-Coil with Pioneer’s high-efficiency YH-series heat pump condenser outdoor section (see models YH1824GHFD18R2 or YH3036GHFD18R2). This combination delivers unrivaled heating and cooling performance.
- Variable Capacity: Catering to systems ranging from 18,000 to 36,000 BTU, this A-coil’s flexible design lets you pair it with various heat pump systems to meet your unique needs.
- High Efficiency: Pioneer’s advanced engineering assures efficient heat exchange, resulting in optimal performance of your heating and cooling system, a more comfortable environment, and significant energy savings.
- Robust Casing: The A-Coil’s durable construction guarantees leak prevention, providing long-lasting service and peace of mind.
- Condensate Management System: A built-in condensate management system adeptly handles any condensation, ensuring the longevity of your equipment by preventing water damage.
- Enhanced Comfort: The Pioneer A-Coil promotes consistent indoor temperatures, providing a more comfortable and enjoyable living environment.
- Adaptable Deployment: Easy integration into your existing in-place furnace, with numerous placement selections, and full compatibility with Pioneer YH-series central condenser outdoor section. Included are sweat to flare connectors for simplified commissioning.
- Energy Savings: Lower your energy consumption and significantly reduce your utility bills thanks to its high-efficiency operation.
- Quality Assurance: Trust in Pioneer’s commitment to high-quality products, superior performance, and exceptional durability.
Specifications
| Product Dimensions (W × D × H) | 22-1/16 × 20-1/16 × 21-7/16 in. |
|---|---|
| Supply Side Outlet Dimensions | 17-1/2 × 17-1/2 in. |
| Electrical Voltage | 208–230 V, 60 Hz, 1-Phase |
| Refrigerant | R-410A with TXV installed |
| Connection Diameters | Liquid: 3/8″; Suction: 3/4″ |
| Drain Configurations | Upflow, downflow, left-hand, right-hand discharge. |
What our Experts Think
-
High-capacity whole-area comfort: This 48,000 BTU ceiling concealed ducted mini-split system delivers powerful cooling and heating performance for large residential or light-commercial spaces (~1,350–1,800 sq ft) — ideal for open layouts or multi-room ducted distribution.
-
Efficient inverter-driven operation: Featuring Inverter+ variable-speed DC technology, the system maintains stable indoor temperatures, reduced compressor cycling, and improved part-load efficiency, helping balance comfort and operating costs.
-
Balanced seasonal efficiency: With 15.1 SEER2 cooling efficiency and ~9.3 HSPF2 heating performance, it offers dependable year-round climate control while supporting moderate long-term energy savings compared with older fixed-speed ducted systems.
-
Discreet ceiling-concealed installation: Designed for hidden ducted applications, this system distributes conditioned air evenly through ductwork while preserving interior aesthetics — a strong choice for projects requiring invisible HVAC integration.
-
Robust airflow capability: High indoor airflow output (up to ~1,228 CFM) and adjustable static pressure support effective distribution across larger zones or longer duct runs, ensuring consistent comfort throughout the conditioned area.
-
Complete professional full-set package: Includes indoor air handler, outdoor condenser, wired controller, and installation accessories, simplifying system specification and installation planning for HVAC professionals.
Q&A
Q1: What type of system is this Pioneer model?
A: It is a one-way ceiling cassette indoor mini-split section with Inverter++ heat pump, designed for multi-zone ductless systems.
Q2: What cooling and heating capacity does it provide?
A: Provides 9,000 BTU cooling with heat pump heating, ideal for small rooms or targeted comfort zones.
Q3: How energy-efficient is this unit?
A: Equipped with Inverter++ technology, delivering precise temperature control, quiet operation, and reduced energy consumption.
Q4: What installation style does it support?
A: Designed for flush ceiling cassette installation, offering discreet airflow through a slim one-way discharge design.
Q5: What electrical requirements does it have?
A: Operates on 230 V single-phase power, compatible with residential or light-commercial systems.
Q6: Can it integrate into multi-zone configurations?
A: Yes, it is built for multi-zone setups, allowing connection to compatible Pioneer outdoor condensers.
Q7: Can it provide heating in colder conditions?
A: Yes, the heat pump supports low-ambient heating performance for year-round comfort.
Q8: What comfort features enhance performance?
A: Offers quiet airflow distribution, adjustable fan speeds, and efficient zone temperature management.
Q9: What spaces is this indoor unit best suited for?
A: Ideal for bedrooms, offices, retail areas, or compact residential spaces needing concealed ceiling installation.
Q10: What makes the one-way cassette design beneficial?
A: The directional airflow pattern helps deliver focused cooling or heating in narrow or perimeter-mounted ceiling locations.
Maintenance Tips
-
Clean indoor air filters every 2–4 weeks to maintain airflow, cooling/heating efficiency, and indoor air quality.
-
Keep the ceiling cassette outlet and intake grille free of dust and debris to ensure smooth one-way air distribution and inverter performance.
-
Inspect condensate drain lines and drip pan regularly to prevent leaks or moisture buildup.
-
Check refrigerant piping, wiring connections, and mounting stability annually for safe and reliable operation.
-
Use the self-clean function periodically to reduce internal moisture and help prevent mold or odors.
-
Maintain adequate ceiling clearance around the unit for consistent airflow and temperature coverage.
-
Schedule professional servicing once per year for inverter diagnostics, refrigerant pressure checks, and overall system optimization.
